A compressed Developer's Guide

About: LTN Schedule (version 10.2+) provides a HTML graphics overlay template engine that allows you to create professional, animated graphics for live production. This guide covers the essential components that new template developers need to understand when building SPX-compatible templates for use with LTN Schedule.

Whether you're creating custom graphics from scratch or adapting existing HTML templates, understanding these core concepts is crucial for successful template development.

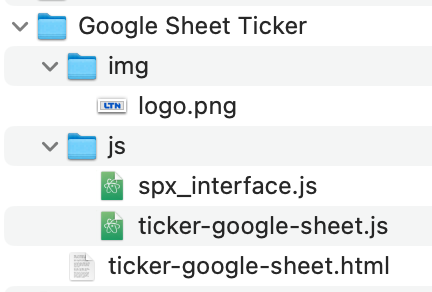

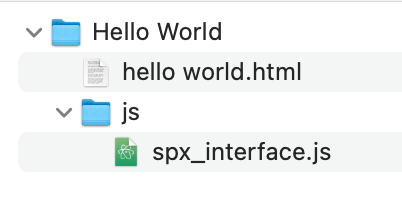

Flexible HTML Template Structure

In just a few steps you can use and control actually every html based graphical overlay - that works in a browser - also within LTN Schedule as a graphical overlay. The key to that is that you deliver your template to LTN Schedule as one .zip file. The file and folder structure within this zip file, should match your given references of scripts, css or javascript from the root html-file as relative folder structure - like this:

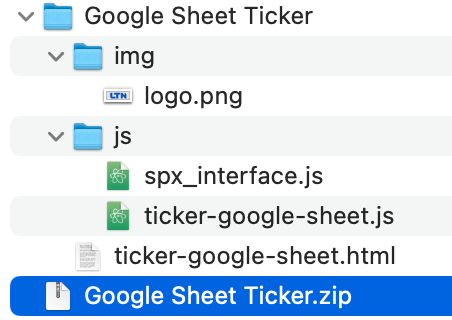

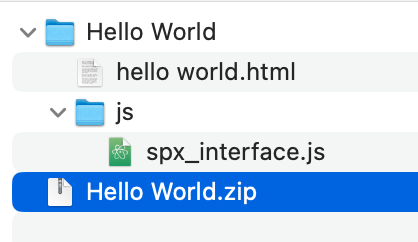

When you are ready with your template creation (or for testing), just zip your folder with all the necessary files and folders, that are needed for you template, and upload this .zip file to LTN Schedule - as described in this article here.

Understanding the `SPXGCTemplateDefinition` Object

What Is It?

The SPXGCTemplateDefinition is a JavaScript object that acts as the bridge between your HTML template and LTN Schedule's control interface. It defines:

How the template should be played out (which server, channel, layer)
What input fields operators will see in the UI
Default values for those fields
Animation behavior and timing

Where Does It Go?

Place this object in a <script> tag within the <head> section of your HTML file, typically as the last item before the closing </head> tag.

Basic Structure

<script>
  window.SPXGCTemplateDefinition = {
    "description": "My Template Name",
    "webplayout": "7",
    "out": "manual",
    "uicolor": "2",
    "DataFields": [
    // Field definitions go here
    ]
  };
</script>

Key Properties Explained

Property	Purpose	Example
description	Human-readable name shown in LTN Schedule	Ticker with Background
webplayout	Preview Layer of browser playback (1-20, where 20 is top)	7
out	How template exits: `manual` (press STOP), `none` (no exit animation), or milliseconds	manual
DataFields	Array of input fields for operators	See below

DataFields: Defining User Input

The DataFields array defines what input controls operators see in LTN Schedule's interface. Each field has a field name (mapped to a hidden div), a type, and a default value.

Common field types:

textfield --> Single-line text input

textarea --> Multi-line text input

dropdown --> Select from predefined options

number --> Numeric input

color --> Color picker

checkbox --> Boolean toggle

filelist --> Select files from ASSETS folder

hidden --> Variable not editable by user (but used by template)

caption --> Static text display

instruction --> Help text

Example DataFields that need to be part of the SPXGCTemplateDefinition <script>:

"DataFields": [
    {
      "field": "tickerText",
      "ftype": "textfield",
      "title": "Ticker Text",
      "value": "Enter your text here"
    },
    {
      "field": "tickerSpeed",
      "ftype": "number",
      "title": "Speed (seconds to traverse screen)",
      "value": "15"
    },
    {
      "field": "textColor",
      "ftype": "color",
      "title": "Text Color",
      "value": "rgba(0, 0, 0, 1.0)"
    },
    {
      "field": "backgroundColor",
      "ftype": "dropdown",
      "title": "Background Style",
      "value": "light",
      "items": [
        { "text": "Light Background", "value": "light" },
        { "text": "Dark Background", "value": "dark" }
      ]
    }
]

Hidden Data Divs: Receiving Data from LTN Schedule

What Are They?

Hidden divs are HTML elements with specific IDs that receive data from LTN Schedule. They act as data containers between the control interface and your template logic.

Where Do They Go?

Place hidden data divs at the end of your HTML, typically in a section marked as SPX data:

HTML Code example:

<div id="hiddenSpxData" data-info="SPX template fields (hidden)">
    <div id="tickerText"></div>
    <div id="tickerSpeed"></div>
    <div id="textColor"></div>
    <div id="backgroundColor"></div>
</div>

Critical Naming Rule

The id attribute of each hidden div MUST match the field name in your DataFields definition.

Example:

DataField with "field": "tickerText" → Hidden div with id="tickerText"
DataField with "field": "tickerSpeed" → Hidden div with id="tickerSpeed"

What Gets Stored

When an operator enters data in LTN Schedule:

The system reads the field value from the input control
It stores the value in the corresponding hidden div's innerText property
Your template JavaScript reads from these hidden divs to update the display

Accessing Hidden Data in Your Code

Use JavaScript to read the values:

Javascript:

const tickerText = document.getElementById('tickerText').innerText;
const speed = document.getElementById('tickerSpeed').innerText;
const color = document.getElementById('textColor').innerText;

Link the `spx_interface.js`

To execute commands from the interface within LTN Schedule to the SPX template, the functions from the spx_interface.js must be referenced within you html code:

...
  <title>My SPX Template</title>
    <script src="js/spx_interface.js"></script>
...

In this example, the spx_interface.js is located in the /js folder - see the attached hello_world.zip file to this article with the demo project. You can also find the whole code of the spx_interface.js in the section Complete Template HTML Code below.

The runTemplateUpdate Function

What Does It Do?

runTemplateUpdate() is called by LTN Schedule whenever:

The template is initially loaded
An operator updates any field value
The template needs to refresh

This is where your template should read data from hidden divs and update the display.

Basic Structure:

Javascript

function runTemplateUpdate() {
    // 1. Read data from hidden divs
    const tickerText = e('tickerText')?.innerText || '';
    const speed = e('tickerSpeed')?.innerText || '15';
    const color = e('textColor')?.innerText || '#000000';

    // 2. Update your template display
    document.getElementById('myTextElement').textContent = tickerText;
    document.getElementById('myTextElement').style.color = color;

    // 3. Recalculate animations if needed
    updateAnimation();

    // 4. Trigger the animation in
    if (typeof runAnimationIN === "function") {
    runAnimationIN();
  }
}

// Make it available to LTN Schedule
window.runTemplateUpdate = runTemplateUpdate;

Implementation Tips:

Always check for null/undefined when reading from hidden divs
Update the DOM with the new values
Recalculate animations if size, speed, or position changed
Call runAnimationIN() at the end to trigger entry animation
Register the function with window.runTemplateUpdate = runTemplateUpdate

Animation Lifecycle: runAnimationIN and runAnimationOUT

Overview:

Your template has two key animation functions that are called at specific points in the graphic's lifecycle:

runAnimationIN() --> Called when the graphic should appear/animate in

runAnimationOUT() --> Called when the graphic should disappear/animate out

`runAnimationIN`: The Entry Animation

This function is called when:

An operator clicks the PLAY button in LTN Schedule
You want the graphic to enter/appear on screen

Javascript

function runAnimationIN() {
    // Example: Fade in the main element
    const mainElement = document.getElementById('mainContent');
    mainElement.style.opacity = '0';
    mainElement.style.transition = 'opacity 0.5s ease-in';

    // Force reflow to apply the 0 opacity
    mainElement.offsetHeight;

    // Trigger animation
    mainElement.style.opacity = '1';

    // Or start an animation
    startAnimation();
  }

window.runAnimationIN = runAnimationIN;

`runAnimationOUT`: The Exit Animation

This function is called when:

An operator clicks the STOP button in LTN Schedule
The template should exit/disappear from screen

Javascript

function runAnimationOUT() {
    // Example: Fade out and hide the element
    const mainElement = document.getElementById('mainContent');
    mainElement.style.opacity = '0';
    mainElement.style.transition = 'opacity 0.5s ease-out';

    // Stop any running animations
    stopAnimation();

    // Hide completely to ensure it doesn't occupy space
    setTimeout(() => {
    mainElement.style.visibility = 'hidden';
    }, 500); // Wait for fade animation to complete
  }

window.runAnimationOUT = runAnimationOUT;

Responsive scaling for different browser sizes and resolutions

After using the html-template with LTN Schedule, the html-template (html code) will be displayed locally within the preview area of the graphics tab of LTN Schedule - see number 2 from the screenshot on the using templates page.

When the template is activated, the template will be also used from a browser, running within the LTN Schedule video engine, that actually puts the overlay on top of the video.

The preview window within the LTN Schedule user interface scales in size - dependent on the resolution of the users browser window.

The resolution of the browser, running within the LTN Schedule video engine, depends on the selected output resolution within the transcoding settings. (e.g. 1920x1080 or 1280x720, etc... see LTN Schedule Transcoding Technical Specification).

That´s why it is very important, that the html code of the template is build in a way, that it scales every content, related to the actual browser window resolution, that the proportions of the page (grfx elements and text) always look the same, no matter in what size (browser window size) the page is displayed.

Complete Template HTML Code

HTML Code:

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <title>My SPX Template</title>
    <script src="js/spx_interface.js"></script>

    <style>
        :root {
            --content-min: 18px;
            --content-max: 96px;
        }

        body {
            margin: 0;
            padding: 0;
            background: transparent;
            font-family: Arial, sans-serif;
            -webkit-font-smoothing: antialiased;
            -moz-osx-font-smoothing: grayscale;
            -webkit-text-size-adjust: 100%;
            box-sizing: border-box;
        }

        /* Full-viewport holding container (keeps renderer sizing predictable) */
        #graphicContainer {
            width: 100vw;
            height: 100vh;
            display: flex;
            align-items: center;
            justify-content: center;
            box-sizing: border-box;
            padding: 2vh 4vw;
        }

        /* Responsive text element
           - `clamp()` keeps the font-size between sensible min/max values
           - `vw` based value lets text scale with viewport width
           - `max-width` and wrapping prevent overflow on narrow viewports */
        #content {
            opacity: 0;
            color: #000;
            transition: opacity 0.5s ease;
            text-align: center;
            display: inline-block;
            max-width: 100%;
            width: auto;
            white-space: pre-wrap;
            word-break: break-word;
            line-height: 1.05;
            padding: 0.1em 0.25em;
            font-size: clamp(var(--content-min), 4.5vw, var(--content-max));
        }
    </style>
</head>

<body>
    <div id="graphicContainer">
        <div id="content"></div>
    </div>

    <script>
        // ====== TEMPLATE DEFINITION ======
        window.SPXGCTemplateDefinition = {
            "description": "Hallo World Template",
            "playserver": "OVERLAY",
            "playchannel": "1",
            "playlayer": "7",
            "webplayout": "7",
            "out": "manual",
            "uicolor": "2",
            "DataFields": [
                {
                    "field": "titleText",
                    "ftype": "textfield",
                    "title": "Title Text",
                    "value": "Hello World"
                },
                {
                    "field": "titleColor",
                    "ftype": "color",
                    "title": "Text Color",
                    "value": "rgba(0, 0, 0, 1.0)"
                }
            ]
        };

        // ====== TEMPLATE LOGIC ======
        function runTemplateUpdate() {
            const titleText = document.getElementById('titleText')?.innerText || '';
            const titleColor = document.getElementById('titleColor')?.innerText || '#000';

            const content = document.getElementById('content');
            content.textContent = titleText;
            content.style.color = titleColor;

            runAnimationIN();
        }

        function runAnimationIN() {
            const content = document.getElementById('content');
            content.style.opacity = '1';
        }

        function runAnimationOUT() {
            const content = document.getElementById('content');
            content.style.opacity = '0';
        }

        window.runTemplateUpdate = runTemplateUpdate;
        window.runAnimationIN = runAnimationIN;
        window.runAnimationOUT = runAnimationOUT;
    </script>

    <!-- ====== HIDDEN DATA DIVS ====== -->
    <div id="hiddenSpxData" style="display: none;">
        <div id="titleText"></div>
        <div id="titleColor"></div>
    </div>
</body>

</html>

Code of the javascript spx interface file from the open source repository of SPX - spx_interface.js :

// ----------------------------------------------------------------
// (c) Copyright 2021- SPX Graphics (https://spx.graphics)
// ----------------------------------------------------------------

// Receive item data from SPX Graphics Controller
// and store values in hidden DOM elements for
// use in the template.

function update(data) {
  var templateData = JSON.parse(data);
  console.log('----- Update handler called with data:', templateData)
  for (var dataField in templateData) {
    var idField = document.getElementById(dataField);
    if (idField) {
      let fString = templateData[dataField];
      if ( fString != 'undefined' && fString != 'null' ) {
        idField.innerText = fString
      } else {
        idField.innerText = '';
      }
    } else {
      switch (dataField) {
        case 'comment':
        case 'epochID':
          // console.warn('FYI: Optional #' + dataField + ' missing from SPX template...');
          break;
        default:
          console.error('ERROR Placeholder #' + dataField + ' missing from SPX template.');
      }
    }
  }

  if (typeof runTemplateUpdate === "function") {
    runTemplateUpdate() // Play will follow
  } else {
    console.error('runTemplateUpdate() function missing from SPX template.')
  }
}

// Play handler
function play() {
  // console.log('----- Play handler called.')
  // if (typeof runAnimationIN === "function") {
  //   runAnimationIN()
  // } else {
  //   console.error('runAnimationIN() function missing from SPX template.')
  // }
}

// Stop handler
function stop() {
  // console.log('----- Stop handler called.')
  if (typeof runAnimationOUT === "function") {
    runAnimationOUT()
  } else {
    console.error('runAnimationOUT() function missing from SPX template.')
  }
}

// Continue handler
function next(data) {
  console.log('----- Next handler called.')
  if (typeof runAnimationNEXT === "function") {
    runAnimationNEXT()
  } else {
    console.error('runAnimationNEXT() function missing from SPX template.')
  }
}

// Encoded text to HTML
function htmlDecode(txt) {
  var doc = new DOMParser().parseFromString(txt, "text/html");
  return doc.documentElement.textContent;
}

// Utility function
function e(elementID) {
  if (!elementID) {
    console.warn('Element ID is falsy, returning null.');
    return null;
  }
  if (!document.getElementById(elementID)) {
    console.warn('Element ' + elementID + ' not found, returning null.');
    return null;
  }
  return document.getElementById(elementID);
}

window.onerror = function (msg, url, row, col, error) {
  let err = {};
  err.file = url;
  err.message = msg;
  err.line = row;
  console.log('%c' + 'SPX Template Error Detected:', 'font-weight:bold; font-size: 1.2em; margin-top: 2em;');
  console.table(err);
  // spxlog('Template Error Auto Detected: file: ' + url + ', line: ' + row + ', msg; ' + msg,'WARN')
};

function validString(str) {
  let S = str.toUpperCase();
  // console.log('checking validString(' + S +');');
  switch (S) {
    case "UNDEFINED":
    case "NULL":
    case "":
      return false  // not a valid string
      break;
  }
  return true; // is a valid string
}

You can find the attached hello_world.zip template file - ready to upload to LTN Schedule - here.

Best Practices for New Developers

Do's ✅

Always define a complete SPXGCTemplateDefinition - LTN Schedule requires this to recognize your template
Match hidden div IDs to DataField names - This is critical for data flow
Test in LTN Schedule - Don't rely only on browser preview
Use descriptive field titles - Help operators understand what each field controls
Provide sensible default values - Operators should see a usable template before editing
Register functions globally - Always do window.runAnimationIN = runAnimationIN
Handle null/undefined data - Use optional chaining or fallbacks
Hide everything on exit - Use both opacity: 0 and visibility: hidden

Don'ts ❌

Don't forget to hide the template on runAnimationOUT - Invisible shouldn't mean it's still there
Don't use IDs that don't match DataField names - Data won't reach your template
Don't assume data will always be present - Always check and provide defaults
Don't use word processors - Always use plain text editors (VS Code, Sublime, etc.)
Don't forget the SPXGCTemplateDefinition - Templates won't import without it

Resources and Further Learning

Summary

When building SPX templates for LTN Schedule, remember these four essential components:

SPXGCTemplateDefinition - Tells LTN Schedule how to integrate your template
Hidden Divs - Receive operator input from the UI
runTemplateUpdate() - Reads data and updates the display
runAnimationIN/OUT() - Control when the graphic appears and disappears

Master these concepts, and you'll be able to create professional, operator-friendly templates that integrate seamlessly with LTN Schedule.

Happy templating! 🎬

hello_world.zip
6 KB Download

A compressed Developer's Guide

Flexible HTML Template Structure

Understanding the SPXGCTemplateDefinition Object

What Is It?

Where Does It Go?

Basic Structure

Key Properties Explained

DataFields: Defining User Input

Hidden Data Divs: Receiving Data from LTN Schedule

Critical Naming Rule

What Gets Stored

Accessing Hidden Data in Your Code

Link the spx_interface.js

The runTemplateUpdate Function

Implementation Tips:

Animation Lifecycle: runAnimationIN and runAnimationOUT

runAnimationIN: The Entry Animation

runAnimationOUT: The Exit Animation

Responsive scaling for different browser sizes and resolutions

Complete Template HTML Code

Best Practices for New Developers

Resources and Further Learning

Related articles

Understanding the `SPXGCTemplateDefinition` Object

Link the `spx_interface.js`

`runAnimationIN`: The Entry Animation

`runAnimationOUT`: The Exit Animation
