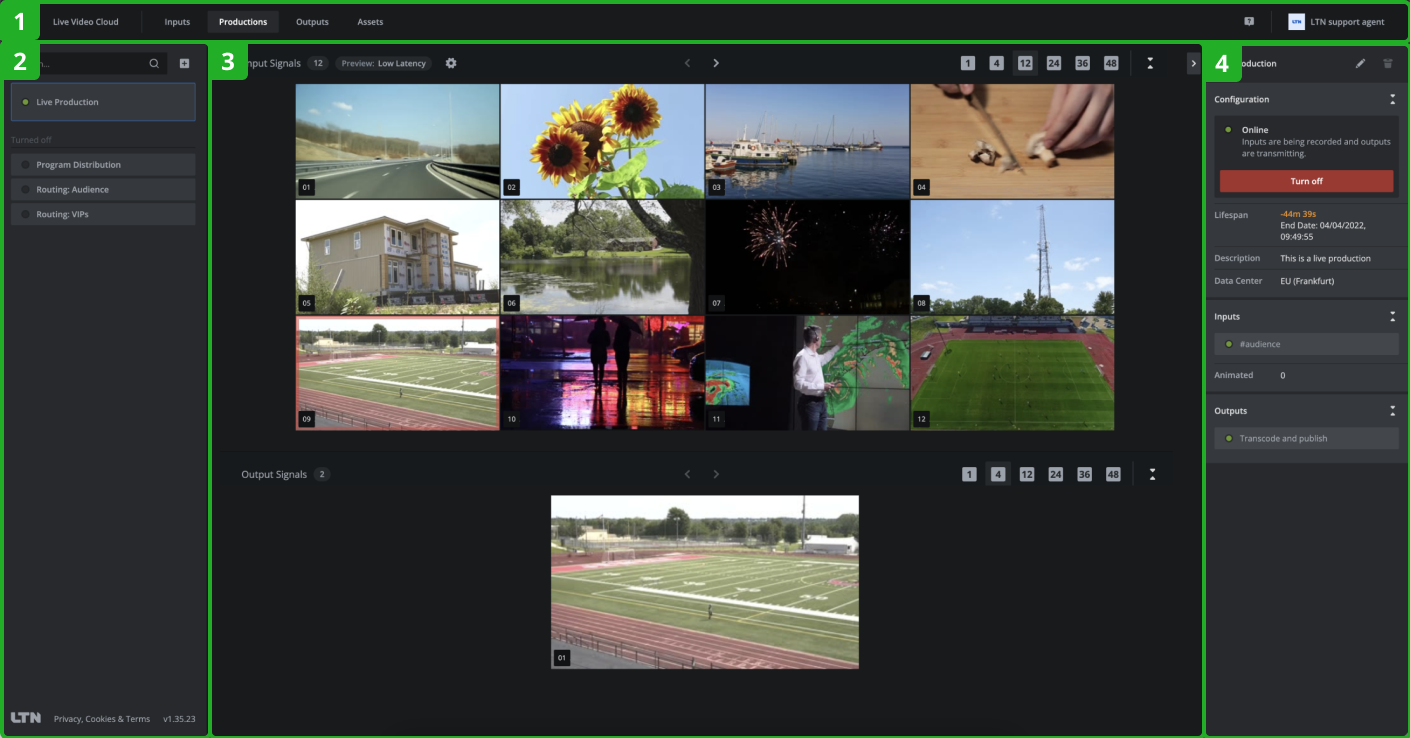

To easily understand the user interface behavior and how to reach your goals, the following sections describe the core UI elements that all guides refer to.

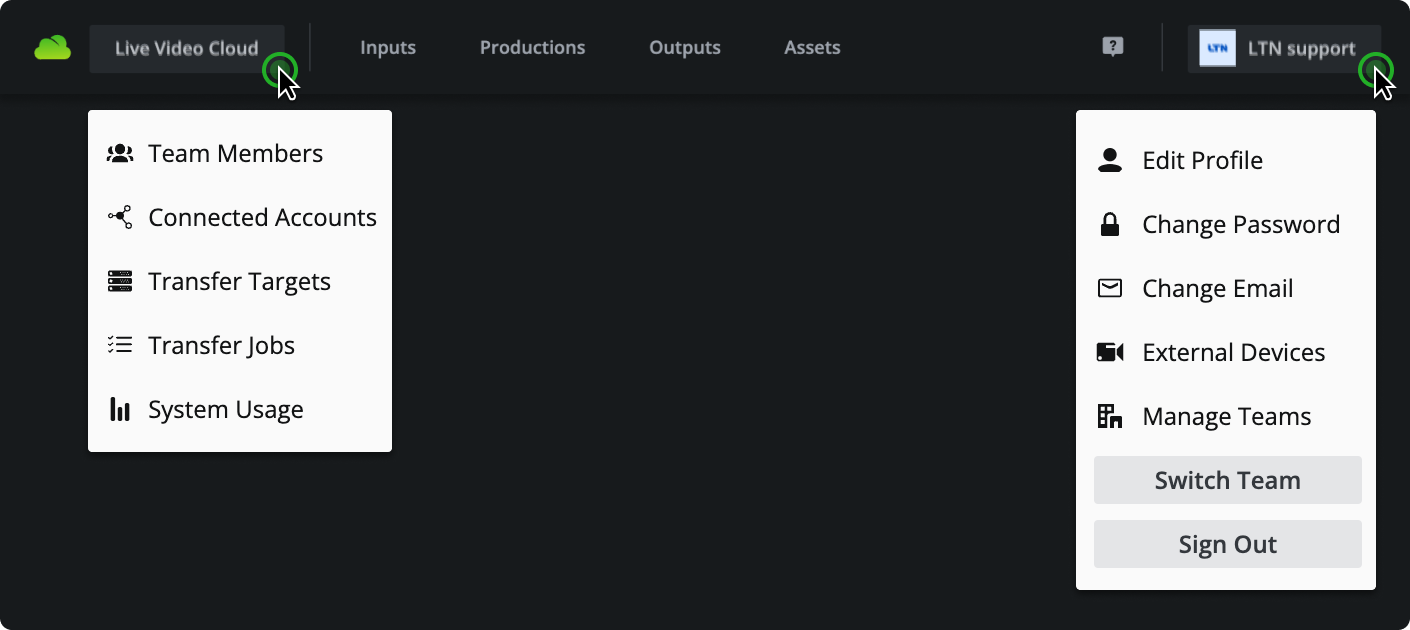

1. Top bar
The top bar is the main navigation. From left to right it contains the team menu, the four core views Inputs, Productions, Outputs, and Assets as well as the user menu on the right.

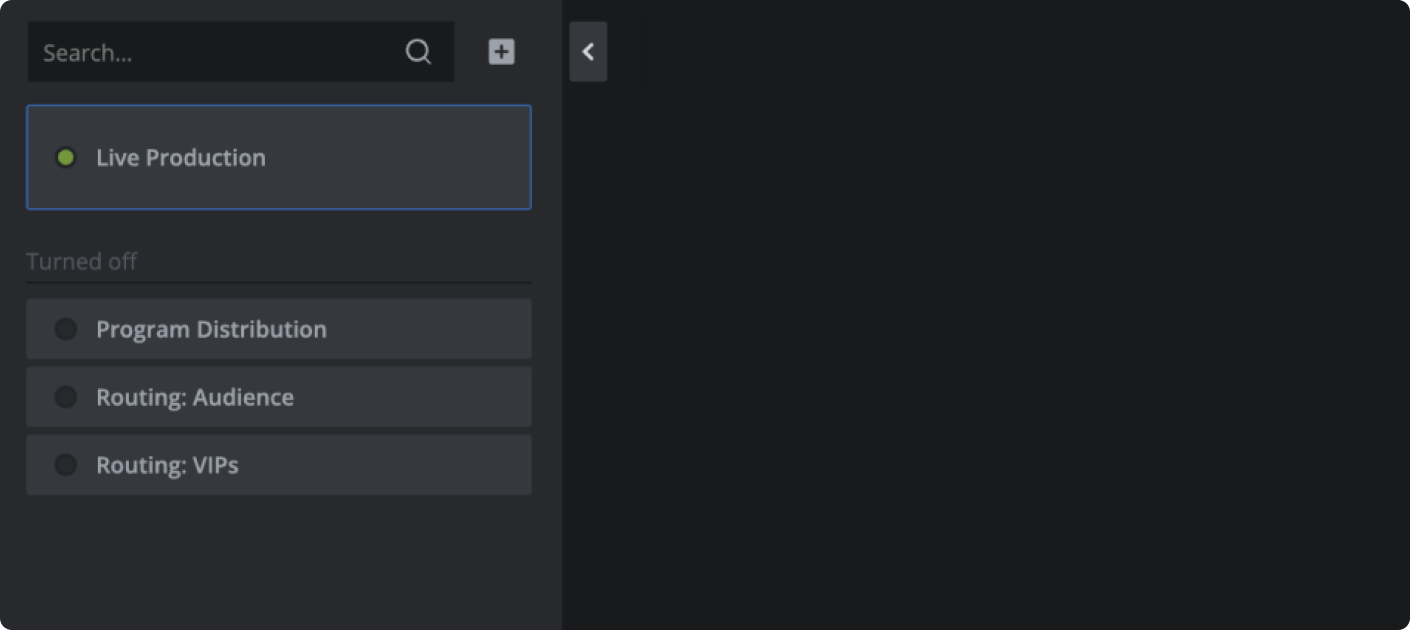

2. Sidebar (Navigation/Filter)
All views use the left sidebar, which can be collapsed or expanded, to either provide content navigation or filter options. Selected elements or adjusted settings decide what you will see on the stage.

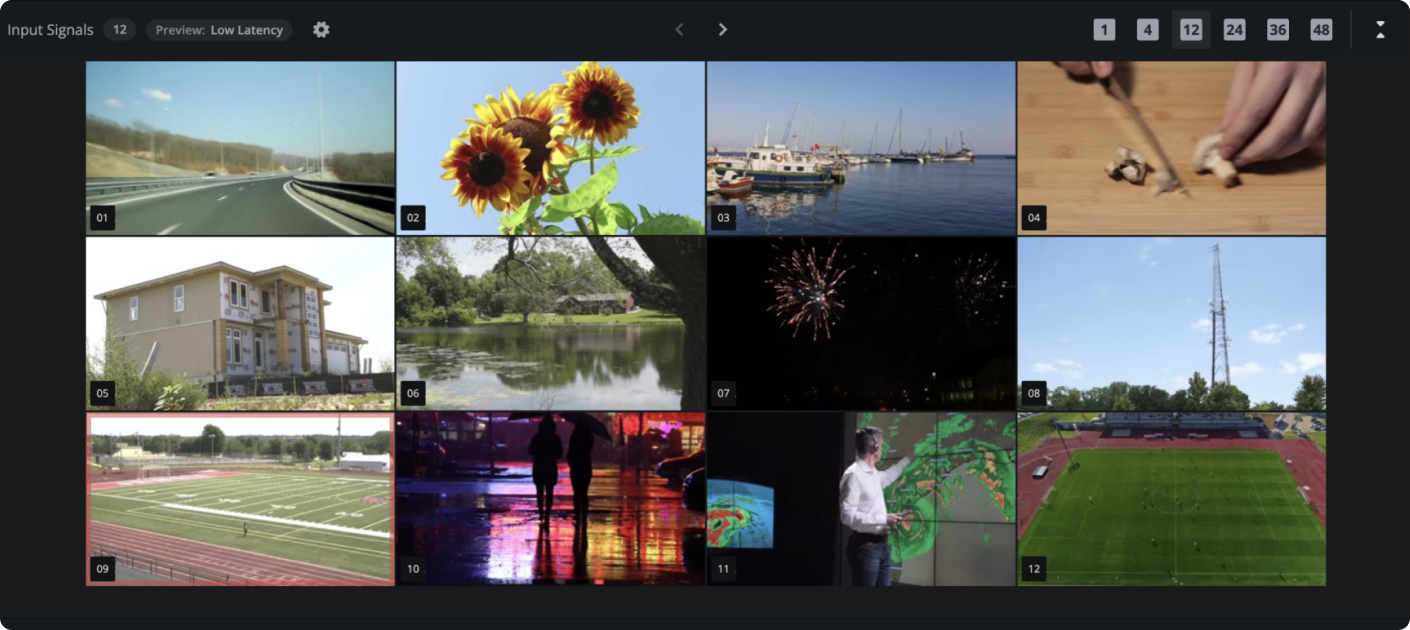

3. Stage
The stage is the main content area focused on content preview and controls. The layout of the stage highly depends on the selected view.

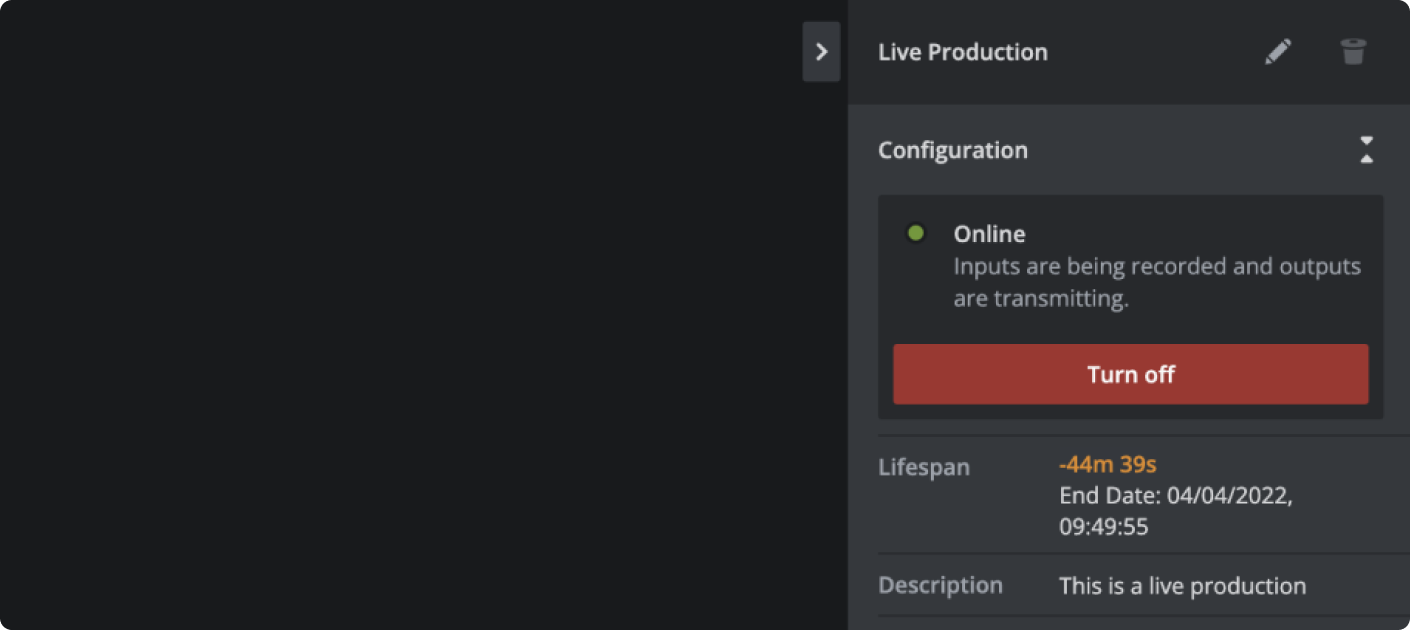

4. Inspector
All views use the right sidebar, which can be collapsed or expanded, to provide configuration information and object-related metadata. The content of the inspector depends on the view and the selected element.

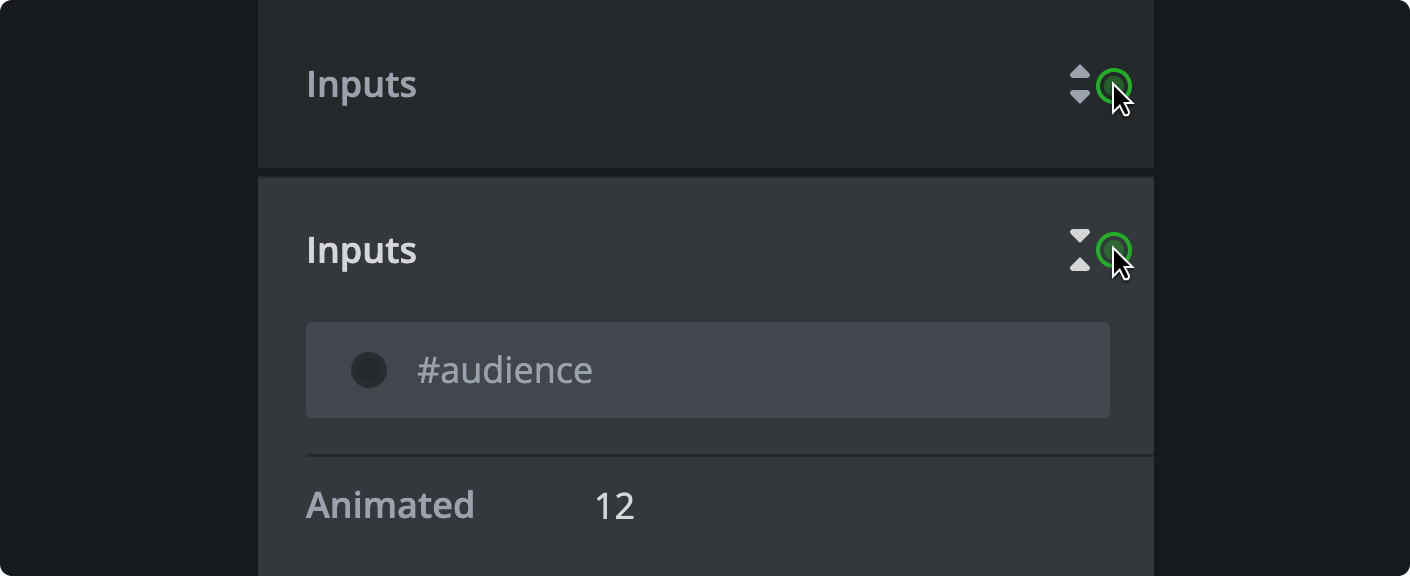

Expandables
The inspector is structured by one or multiple expandables. Each expandable can be collapsed or expanded. This way you are able to access additional information whenever needed.

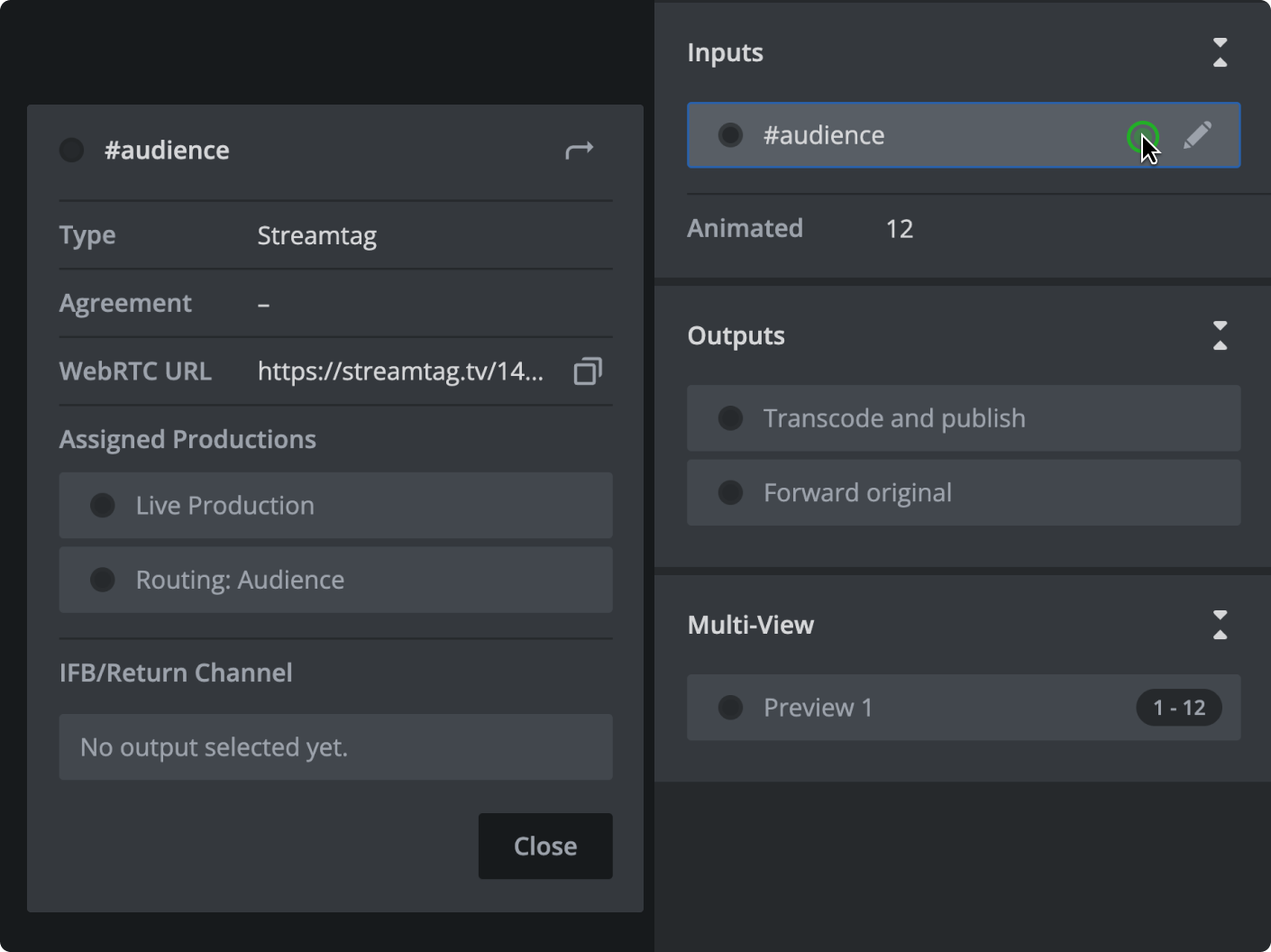

Flyouts
When objects like Inputs, Productions, Outputs, Team Members, and Transfer Targets are displayed in the inspector the visible information may not be enough to support your decision-making. Single-clicking on these objects will open a flyout, summarizing its configuration information and sometimes provide navigation options to jump to related views.
