About: Configure a secondary live stream on your Primary instance to enable your synced Secondary instance to pull SRT or RTMP streams from another endpoint, essential for redundant streaming when the primary SRT listener or RTMP source cannot handle multiple concurrent connections on the same port.
Not sure how to start?
→ Learn how to create a live stream.
Overview
If you require your synced Secondary instance to pull an SRT or RTMP live stream from another endpoint, you can configure a "Secondary stream" on the Primary instance. This is helpful for example when the SRT listener or RTMP source the Schedule is supposed to connect to can not handle multiple connections on the same port.
A secondary live stream can be configured for the following types:
- SRT Caller
- RTMP Pull
Configure secondary live stream
To configure a secondary live stream with optimal settings:

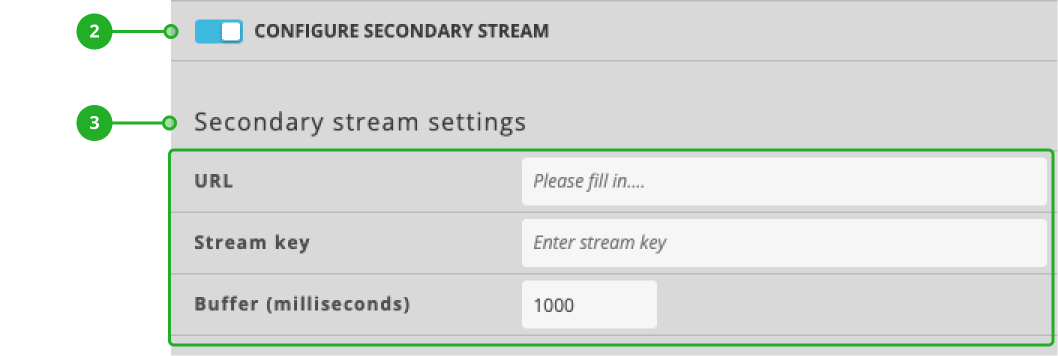

- Open the live stream edit dialog for your existing primary live stream
- Activate the "Configure secondary stream" switch
-
Configure stream parameters based on your chosen protocol:
→ SRT Caller configuration
→ RTMP Pull configuration

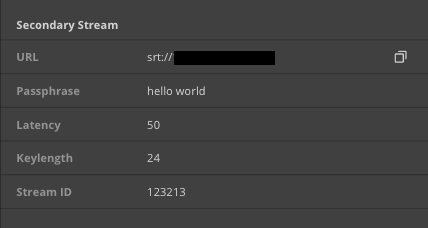

Viewing Secondary Stream Information
Once configured, the secondary stream status is displayed in the inspector :
