About: Each production displays ingested signals of assigned inputs in a multiview grid with up to 48 live signals on one page. How the multiview behaves can be influenced by the configuration of the production and the controls provided at the top of the multiview.
Not sure how to start?
→ Learn how to configure productions.
Production configuration
Multi-View (Animated Signals) = 0
By default, productions are configured with zero animated signals. The multiview displays thumbnails that are updated every ~10 seconds. If you do not need a continuous live preview of your content to make routing decisions nor a visual preview, this setting works just fine for your purpose.
Multi-View (Animated Signals) = 4, 8, 12, 16, 20, 24, 28, 32, …
If a production is configured with 4 or more animated signals Live Video Cloud renders continuous live previews of ingested signals based on first-in-first-serve priority up to the configured amount of animated signals. Additional signals will be displayed as thumbnails. An animated signal that is routed to an output is also displayed as preview on the output tile.

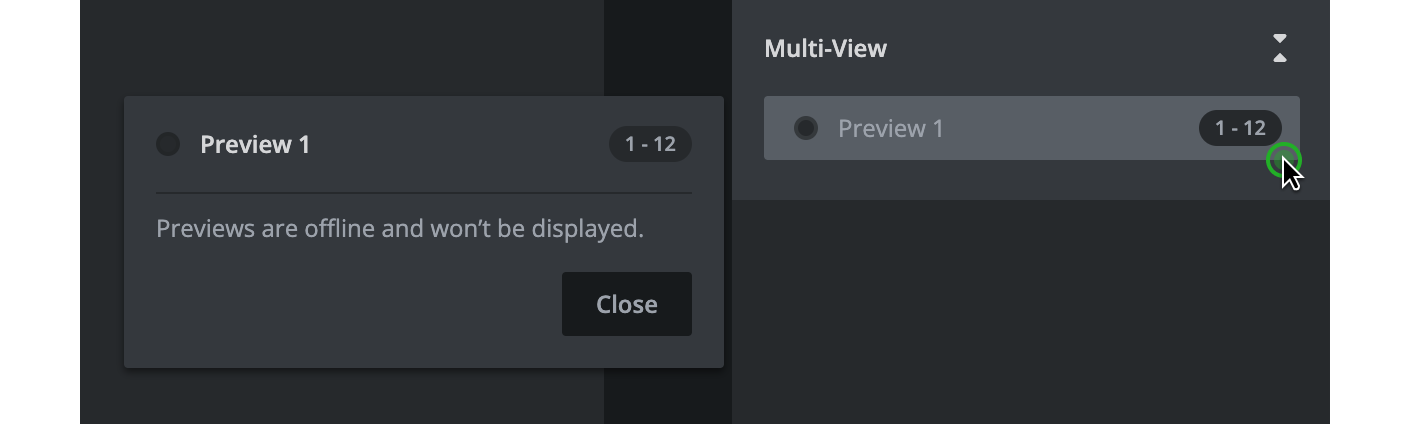

Per every 12 animated signals, Live Video Cloud starts an engine to render the previews in the browser. The status of each engine can be found in the production inspector in the "Multi-View" section. Selecting the object reveals further status information. If the multi-view preview is not working as expected this might give a hint to the cause.
