About: LTN Schedule allows you to monitor your outgoing program as well as the status of each configured destination.
Hint: Some displayed functionalities are only available while your playlist is running.
Not sure how to start?
→ Learn to create destinations.
Monitor destinations

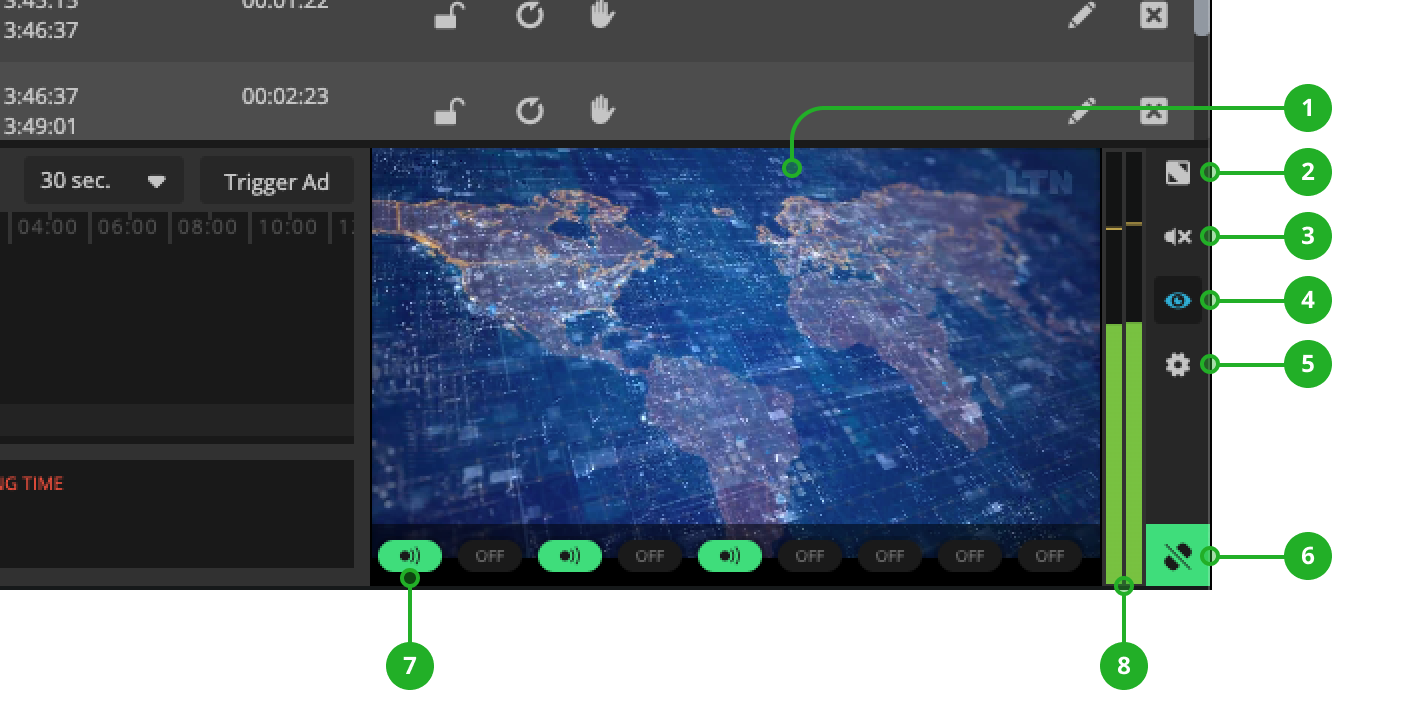

At the bottom right corner, you find a preview of your playing program:
- Video preview: Displays a video preview of your currently playing asset and PGM. Upcoming and running ad breaks including countdowns are also displayed on top of this preview.
- Fullscreen: Click to see the preview of your distributed program in fullscreen.
- Listen/Mute: Click to listen to the audio of your currently playing asset or mute the audio.
- Hide/Show: Click to hide or show the video preview. Hiding may help with connectivity issues due to limited bandwidth, e.g., while using a slow mobile connection.
- Configure destinations: Allows you to configure your broadcast destinations.
→ Learn to create destinations. - Start/stop publishing: Start and stop publishing activates or deactivates all enabled destinations.
→ Learn to start/stop publishing. - Destination status: Displays the status of each configured destination with either offline, enabled, online, or error.
- Audio level meters: Monitor the audio levels, see peak values and zero values and detect if something is wrong with the audio channels.

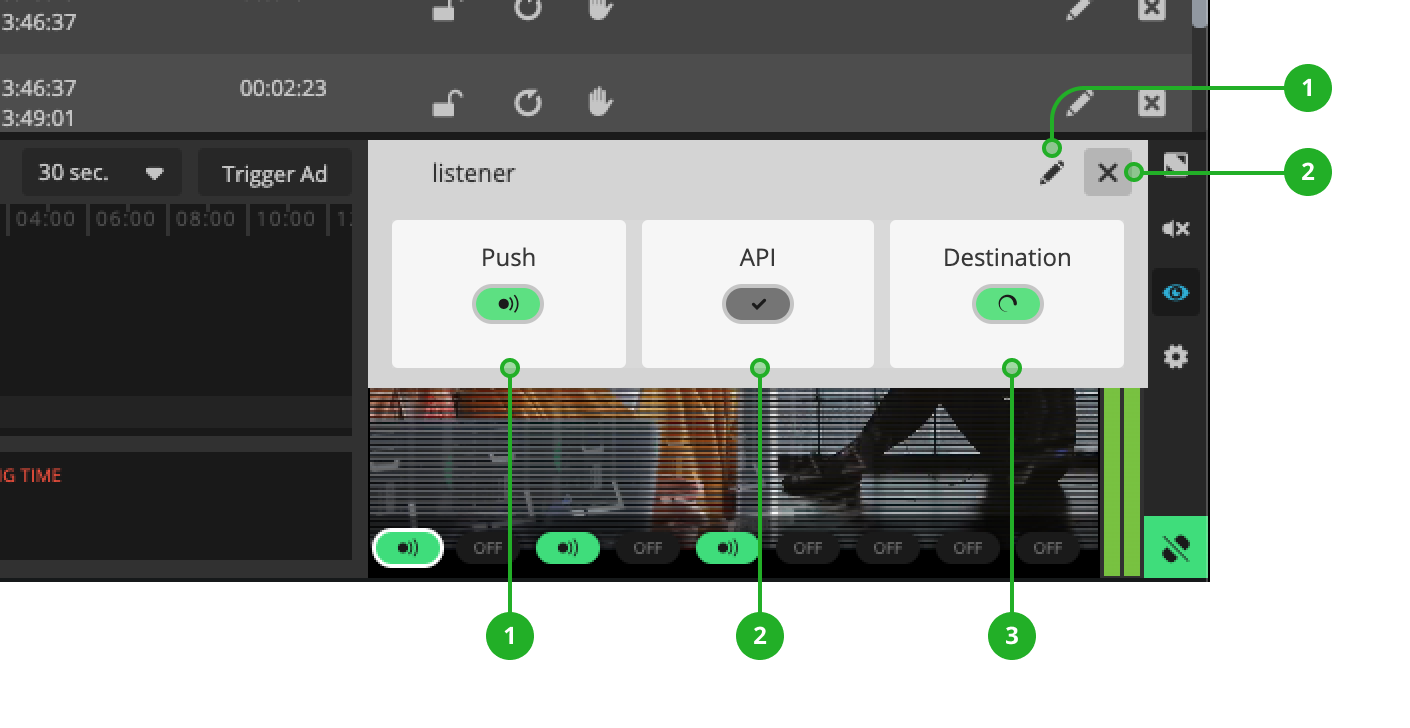

Click on a destination status (7) to get further actions and details on its status:
- Edit: Edit your destination.
- Close: Close the status information overlay.
- Push status: Displays the current push status with either offline, initializing, transmitting, or error.
- API status: Display the current API status.
- Destination status: Displays the current destination status.
How to continue?
